Harley-Davidson® Tuning Guide - Advisory

How do I tune the amplifier on my Harley-Davidson audio kit?

Please use our "Tuning Guides" below to properly configure your aftermarket Harley-Davidson® audio kit. These guidelines have been refined by our installation technicians for optimum performance and product longevity. Failure to follow or "tweaking" the below recommendations will likely lead to speaker failure.

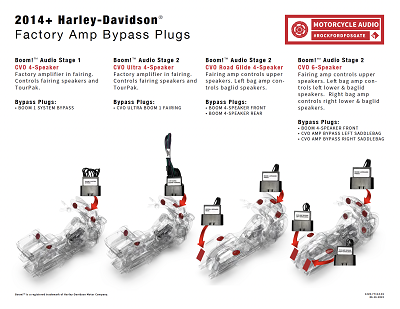

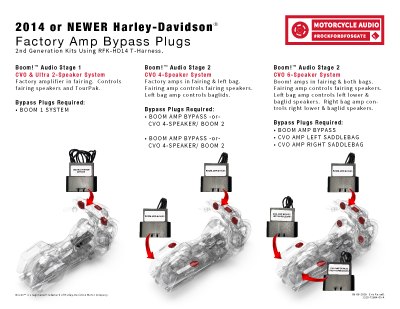

2014+ Street Glide / Road Glide / Ultra / CVO



Motorcycle Audio Kit	Tuning Guide	Download

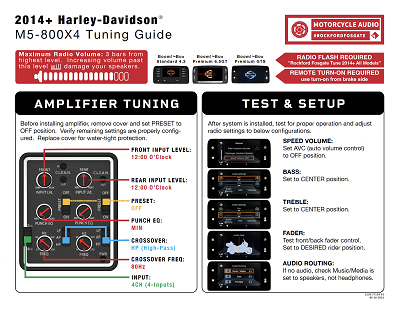

3rd Generation 2014+ Audio Kits with factory radio: • HD14-STG2 • HD14-STG3 • HD14-STG5 • HD14U-STG2 • HD14CVO-STG2

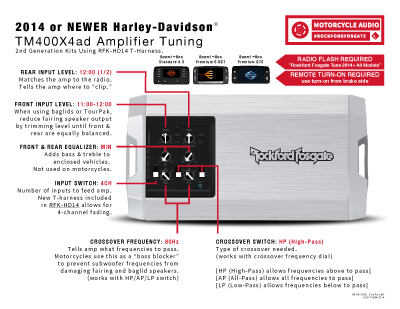

2nd Generation 2014+ Audio Kits with factory radio: • HD14RGSG-STAGE2 • HD14RGSG-STAGE3 • HD14U-STAGE2 • HD14U-STAGE3 • HD14CVO-STAGE2 • HD14CVO-STAGE3
1st Generation 2014+ Audio Kits with factory radio: • HD14-TKIT

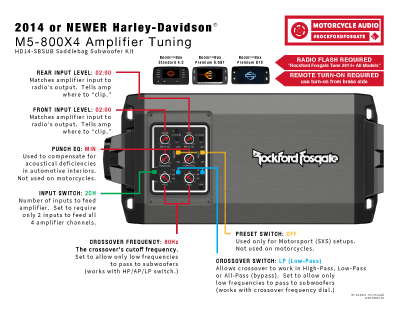

1st Generation 2014+ Subwoofer Kit with existing TMS kit: • HD14-SBSUB

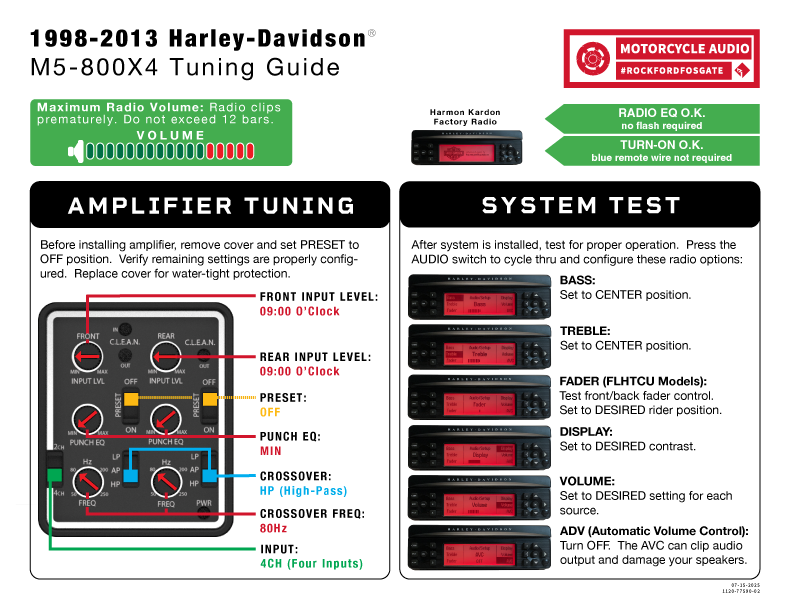

1998 - 2013 Road Glide / Street Glide



Motorcycle Audio Kit	Tuning Guide	Download

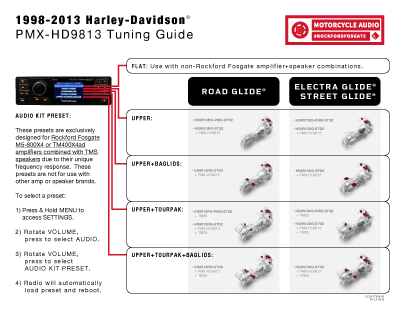

3rd Generation 1998-2013 Audio Kit with PMX radio: • HD9813RG-PMX-STG2 • HD9813SG-PMX-STG2
3rd Generation 1998-2013 Audio Kit  with factory radio: • HD9813RG-STG2 • HD9813RG-STG3 • HD9813SG-STG2 • HD9813SG-STG3
2nd Generation 1998-2013 Audio Kit  with PMX radio: • HD9813SG-STAGE1 • HD9813SG-STAGE2 • HD9813SG-STAGE3 • HD9813RG-STAGE1 • HD9813RG-STAGE2 • HD9813RG-STAGE3 • HD9813SGU-STAGE1 • HD9813SGU-STAGE2 • HD9813SGU-STAGE3 • HD9813RGU-STAGE1 • HD9813RGU-STAGE2 • HD9813RGU-STAGE3

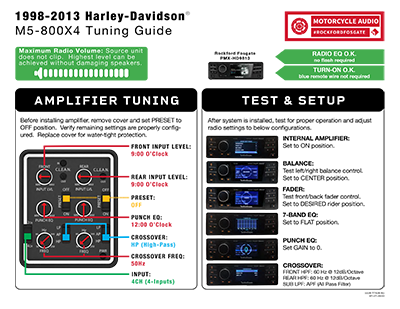

2nd Generation 1998-2013 Amp Kit with factory radio. • RFKHD9813
1st Generation 1998-2013 Audio Kit with factory radio: • HD9813RG-TKIT • HD9813SG-TKIT

2014+ / 1998-2013 Road King

Motorcycle Audio Kit	Tuning Guide	Download

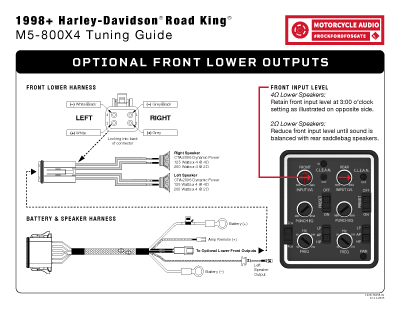

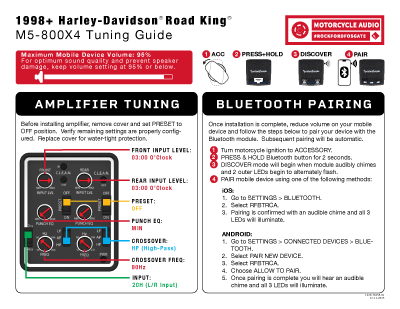

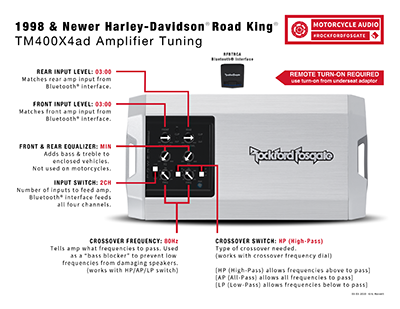

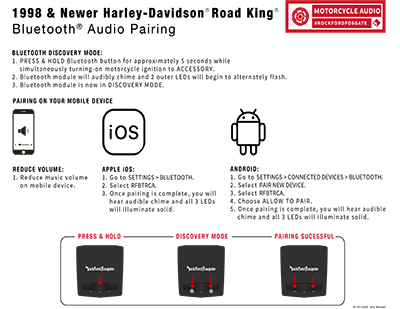

2nd Generation 1998+ Road King Amp Kit with Bluetooth: • RFK-HDRKM5
1st Generation 2014+ Road King Kit with Bluetooth: • HD14RK-STAGE2
1st Generation 1998-2013 Road King Kit with Bluetooth: • HD9813RK-STAGE2

Author: Eric Russell
