RFX8620M 6-disc changer compatibility chart

Where can I find installation and wiring codes for the RFX8620M marine 6-disc cd changer?

The following is an extract from the source unit manual for the RFX620M 6-disc changer. This model was specifically sold for use with marine HYUNDAI manufactured units.

Compatibility Chart
Compatible	Year	Model	Description
X	2003.5-2004	RFX9020M	AM/FM ST/MP3/CD Player/CD Changer Controller/Detachable Faceplate
X	2003.5-2004	RFX9220M	AM/FM ST/MP3/CD Player/CD Changer Controller/Detachable Faceplate

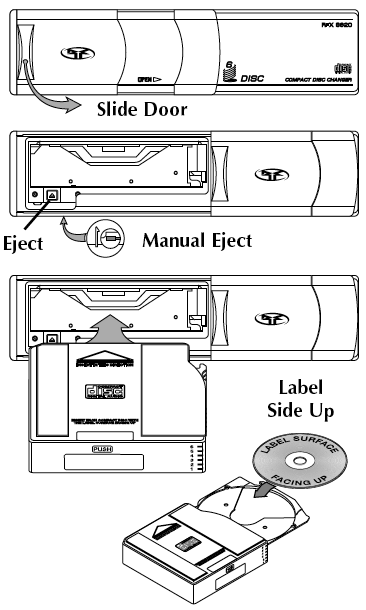

Magazine Eject

1. Slide door open in the direction shown.
2. Press the EJECT button to release the disc magazine from the CD changer.

NOTE: The panel will display NO CD, if in CDX mode, then go to AUX1 mode.

NOTE: If the front eject button does not work, a manual eject lever is visible through a hole at the bottom of the unit. Move the lever in the direction shown to eject magazine.

Loading Disc to the Magazine

1. Pull out the desired disc tray number from the magazine.
2. Place the disc into the magazine, label side up.
3. Push the disc tray back into the magazine.

NOTE: Discs numbers are arranged from the bottom up.

Loading the Magazine to the CD Changer
The INSERT IN THIS DIRECTION arrow indicates the proper direction that the magazine should be loaded into the CD changer.

CAUTION: Avoid installing or leaving the magazine where it would be subject to high temperatures such as from direct sunlight or from hot air from the heater. Doing so will damage the unit.
