What are the pin-outs on Color Optix connectors?

Can I program my M1/M2 speaker to display a color without the Color Optix controller?

PIN OUTS

---

Determine the correct terminal for your wiring projects.


2-Pin Speaker*
Optional

4-Pin LED
Included Harness

Deutsch/Amphenol #DT06-2S

Deutsch/Amphenol #DT06-4S

PIN	DESIGNATOR	VOLTAGE
1	Seaker	(+)
2	Speaker	(—)

*NOT included with speakers

PIN	DESIGNATOR	COLOR	VOLTAGE	AWG
1	RGB	Red	NEG	22
2	RGB	Yellow	+12V	22
3	RGB	Blue	NEG	22
4	RGB	Green	NEG	22

---

6-Pin Speaker + LED
Included Harness

Deutsch/Amphenol #DT06-6S

PIN	DESIGNATOR	COLOR	VOLTAGE	AWG
1	Speaker	Black	(—)	18
2	RGB	Yellow	+12V	22
3	Speaker	Red	(+)	18
4	RGB	Green	NEG	22
5	RGB	Red	NEG	22
6	RGB	Blue	NEG	22

COLOR CODES

---

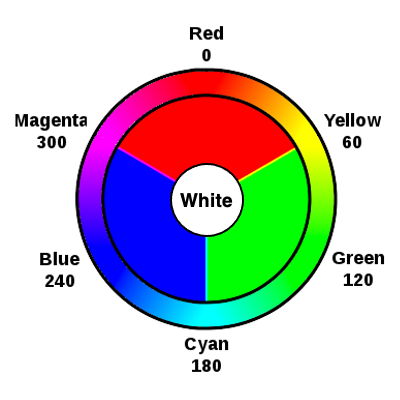

Program an M1/M2 speaker or subwoofer to statically illuminate white or 1 of 6 colors.

• +12V = 12 volts positive (+)
• NEG = 12 volts negative (-)

WHITE
PIN	WIRE	VOLTAGE
1	Red	NEG
2	Yellow	+12V
3	Blue	NEG
4	Green	NEG

RED
PIN	WIRE	VOLTAGE
1	Red	NEG
2	Yellow	+12V
3	Blue	—
4	Green	—

YELLOW
PIN	WIRE	VOLTAGE
1	Red	NEG
2	Yellow	+12V
3	Blue	—
4	Green	NEG

GREEN
PIN	WIRE	VOLTAGE
1	Red	—
2	Yellow	+12V
3	Blue	—
4	Green	NEG

CYAN
PIN	WIRE	VOLTAGE
1	Red	—
2	Yellow	+12V
3	Blue	NEG
4	Green	NEG

BLUE
PIN	WIRE	VOLTAGE
1	Red	—
2	Yellow	+12V
3	Blue	NEG
4	Green	—

MAGENTA
PIN	WIRE	VOLTAGE
1	Red	NEG
2	Yellow	+12V
3	Blue	NEG
4	Green	—
