PMX-HD9813 Source Unit - software update & owner's manual

Eric Russell
  • Updated
Where can I get software updates for my PMX-HD9813?
Where can I get replacement screws to install the PMX-HD9813?
Installation Guides

  • PMX-HD9813 - Digital Media Receiver for 1998-2013 Harley-Davidson [Owners Manual]

Software Updates



FORMAT USB DRIVE

Please ensure your USB drive is formated to FAT16 or FAT32. The PMX radio does not support NTSF or exFAT.

WINDOWS Computers APPLE Computers
  1. Insert Flash Drive into USB
  2. Click Start select Computer
    (on Windows 10, click File Folder)
  3. Right click Flash drive
  4. Click Format
  5. Click the File System list box and select FAT32
  6. Click Start to format the drive
  1. Insert Flash Drive into USB
  2. Search for Disk Utility and open application
  3. Select Flash Drive and click Erase
  4. Select MS-DOS (FAT)
  5. Confirm Erase to format the drive



FILE TYPES

  • GUI *.img (Graphical User Interface)
  • DECODE *.mva (Audio Decoder)
  • MCU *.smx (Micro Controller Unit)
  • BLUETOOTH *.dfu (Bluetooth Module)
  • SXM *.sxm (Sirius XM Module)

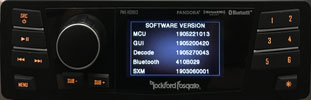

CHECK SOFTWARE VERSION

  1. Press & hold MENU button until options appear.

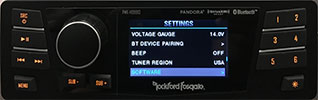

    Rotate ENCODER and scroll to SOFTWARE.

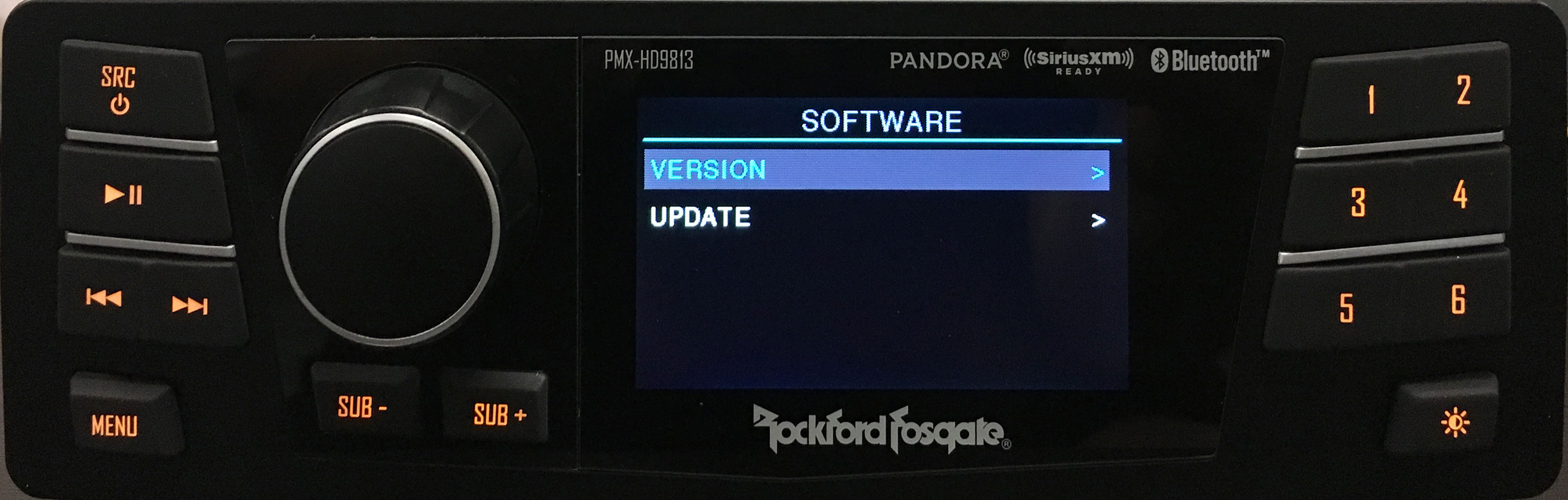

  2. Press ENCODER to select VERSION.

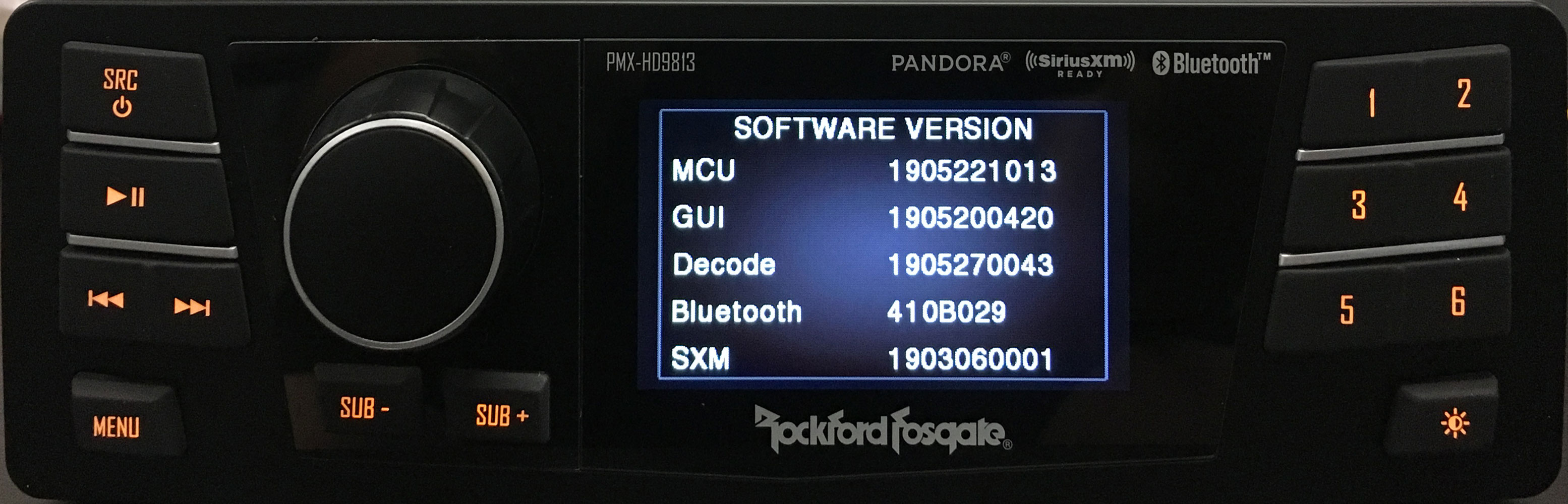

  3. Menu will display current SOFTWARE VERSION.


UPDATE SOFTWARE

There are up to (5) five files to upgrade the source unit. You must only have the upgrade files on the USB flash drive. DO NOT leave any other files other than the required files on the USB or the update will fail.


    1. Download below software to USB flash drive (be sure to "Format USB Drive" as shown above.)
      Extract update files from ZIP using unpacker utility like 7-Zip or Win-Zip before proceeding.

      Release Version Description Notes
      (*.txt)      		 Software
      (*.zip)
      07-APR-24 Version: SW20240407
      MCU: 2208041301G
      Decode: 2403280146
      GUI: 2108020426
      Bluetooth: 2109160027
      Remote: V10.1
      SXM: 1903060001      		 -Decoder update for AP8064 hardware
      -NOTE: Install both MCU files simultaneously.      		 notes Download
      28-JUL-22 Version: SW2207231301
      MCU1: V2207231301
      MCU2: V2207221301
      Decode: 2110080118
      GUI: 2108020426
      Bluetooth: 2109160027
      Remote: V10.0      		 -Update gain staging (PMX output levels) to be compatible with new M5 amplifiers in 9813 kits.
      -Improve sound signature of systems with EQ and DSP crossover changes.
      -Improve TMS tweeter reliability by implementing DSP limiters.
      -NOTE: Install both MCU files simultaneously.      		 notes Download
      15-NOV-21 Version: SW20211124
      MCU: 2111131301G
      Decode: 2110080118
      GUI: 2108020426
      Bluetooth: 2109160027
      Remote: V10.0      		 -Hardware redesign for new IC
      -MCU Version Change
      -DSP version change
      -Decode/BT version change
      -Apply SWC debug       		 notes Download
      25-MAY-21 Version: SW210511
      MCU: V2104111321
      Decode: V107_210511
      GUI: 2104130424
      Bluetooth: N/A
      Remote: V8.7      		 -Misc Improvements notes
      17-SEP-19 Version: SW20190917
      MCU: 1909171016
      Decode: 1905270043
      GUI: 1909180423
      Bluetooth: 410B029
      Remote: V8.7      		 -Tune Kit Name Changes (upgrade gui & mcu together)
      1) FLAT FLAT
      2) STAGE 1 UPPER FAIRING
      3) STAGE 2 UPPER+BAGLIDS
      4) STAGE 3 UPPER+TOURPAK
      5) STAGE 3 UPPER+TOURPAK+BAGLIDS      		 notes
      13-JUL-19 MCU: 1907121016
      Decode: 1905270043
      GUI: 1907020421
      Bluetooth: 410B029
      Remote: V8.7      		 Production Software Version
      -Fixed "Audio kit preset" interface      		 notes
      08-JUL-19 Version: SW20190705
      MCU: 1907051016
      Decode: 1905270043
      GUI: 1907020421
      Bluetooth: 410B029
      Remote: V8.7      		 -Add "Audio Preset Kit" notes

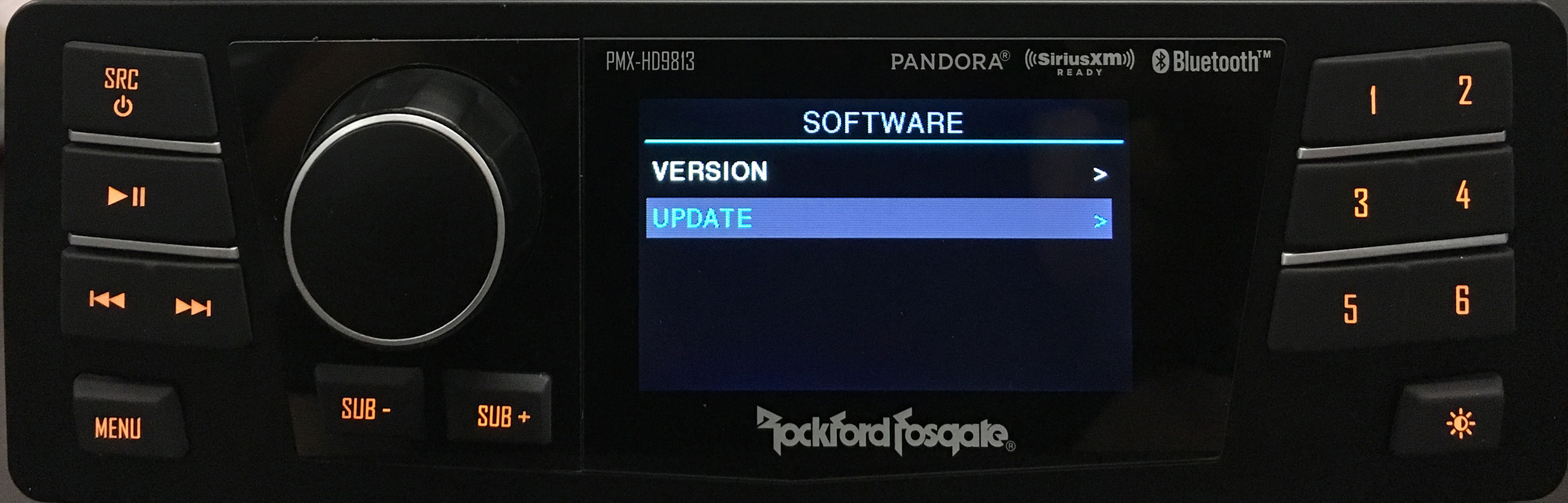

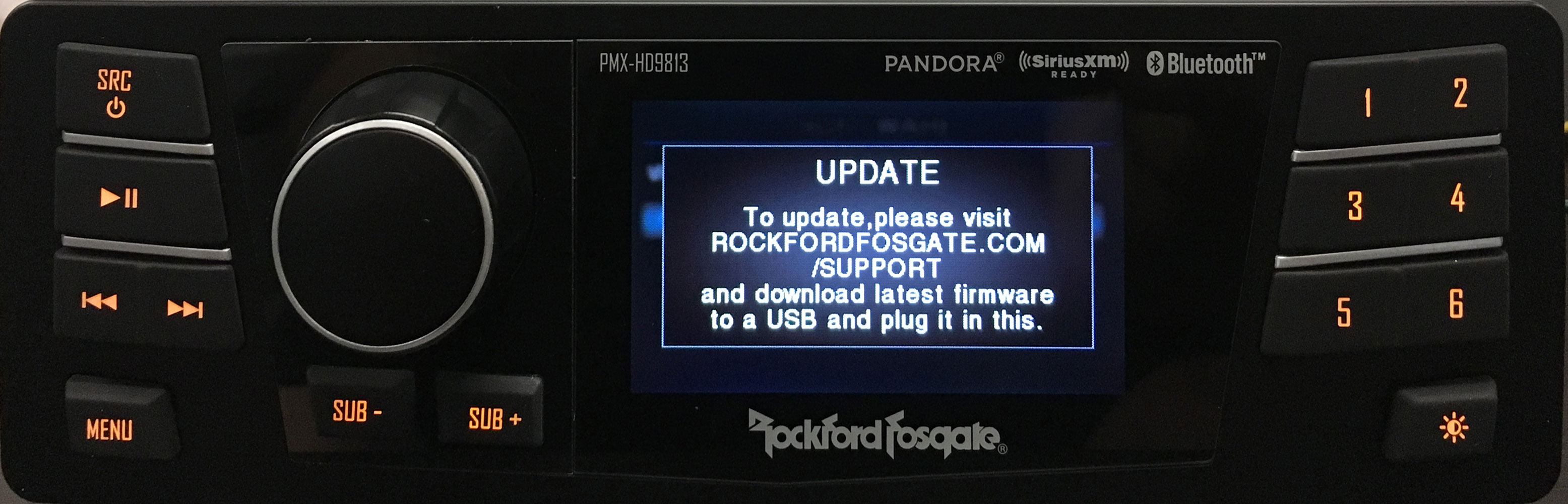

  1. Insert USB into the radio's rear USB connector.

  2. Momentarily press the SRC button.

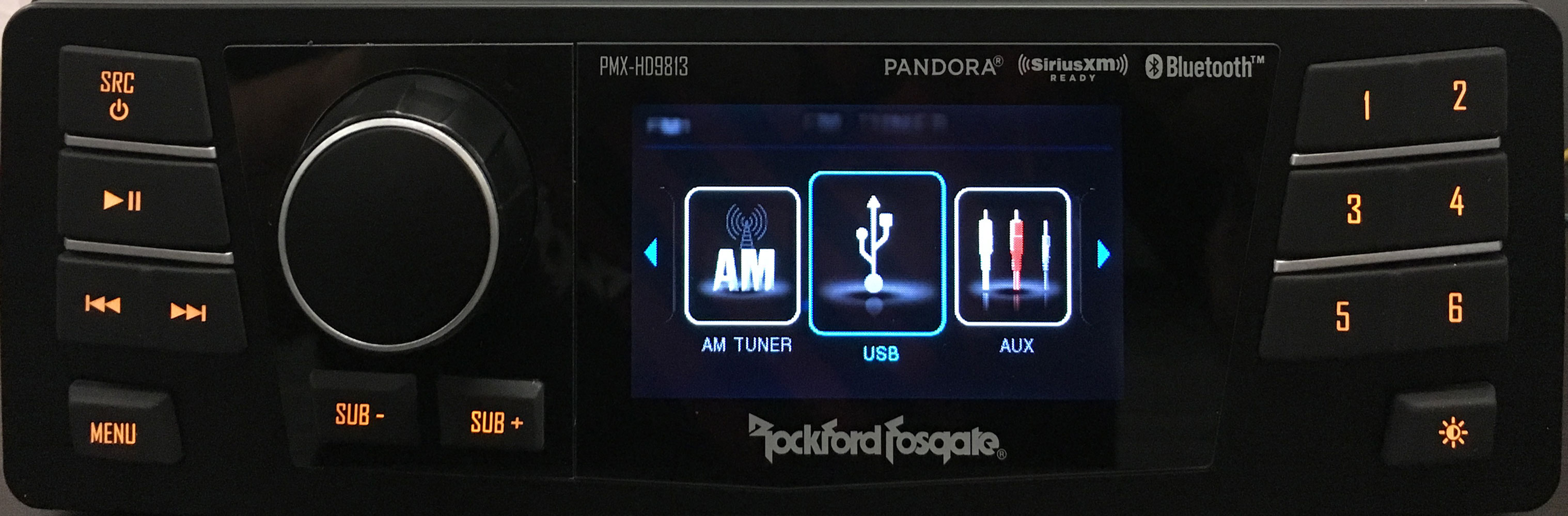

    Rotate the ENCODER and scroll to USB.

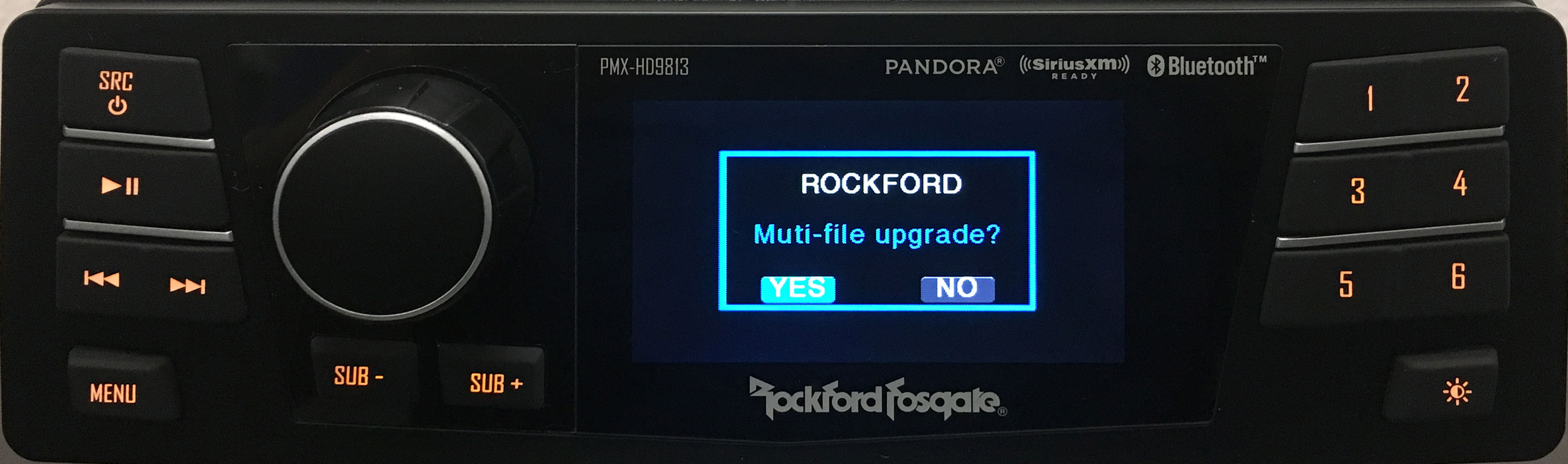

  3. If multiple files are being uploaded on USB, rotate ENCODER and push to select YES.

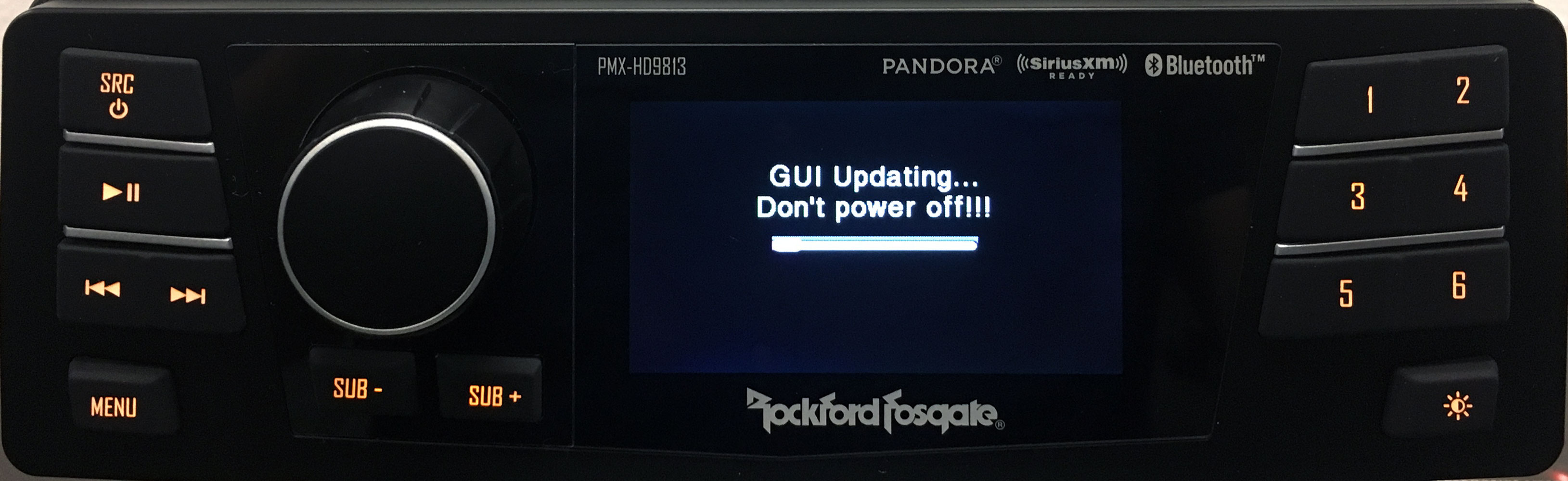

  4. DO NOT turn-off power while performing software updates.



Replacement Parts

Radio Screws
If you need to purchase replacement screws for installation of the PMX-HD9813, you can buy them directly from your local Harley-Davidson parts department. Below is the specification of the part:

Harley-Davidson Radio Screws Screw Packaging Screw Detail

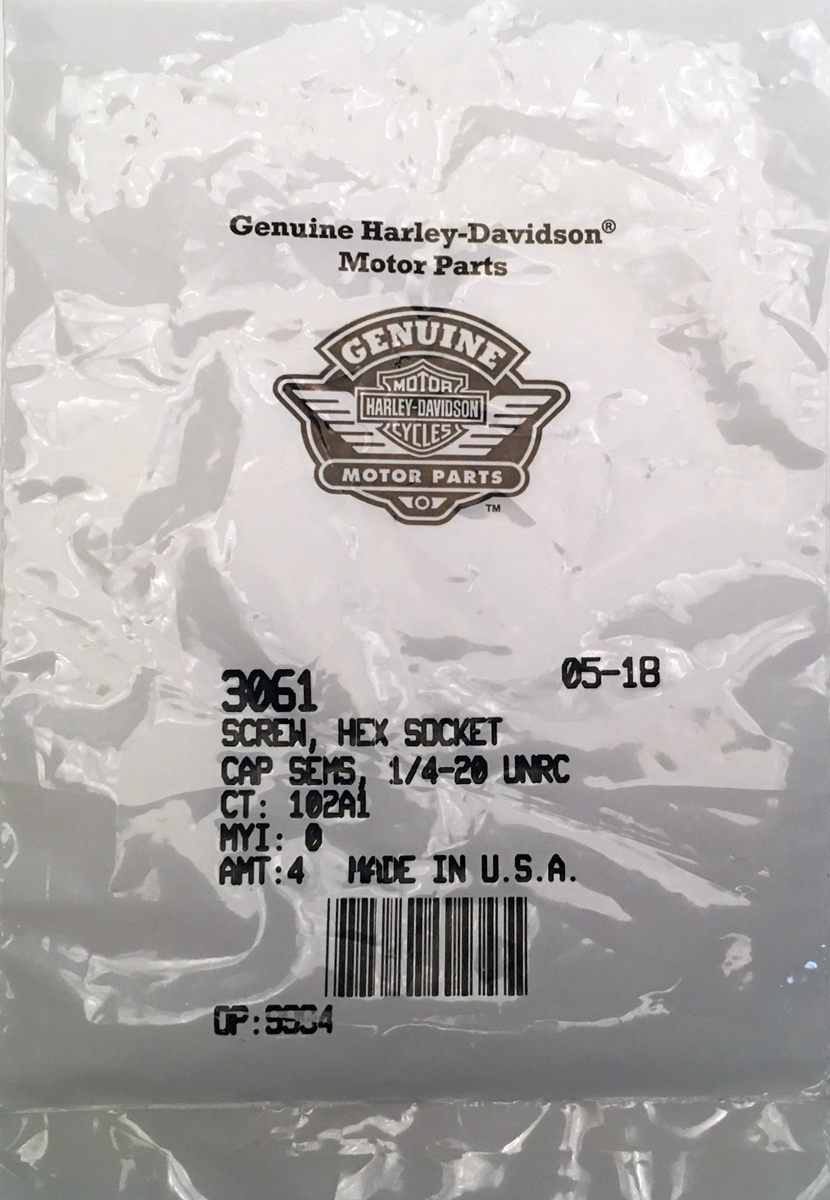

H-D Part Number: #3061
Description: 1/4-20 Hex Socket Screw
Allen Wrench Size: 3/16"
Quantity: 4 pcs.
Price: $4.12

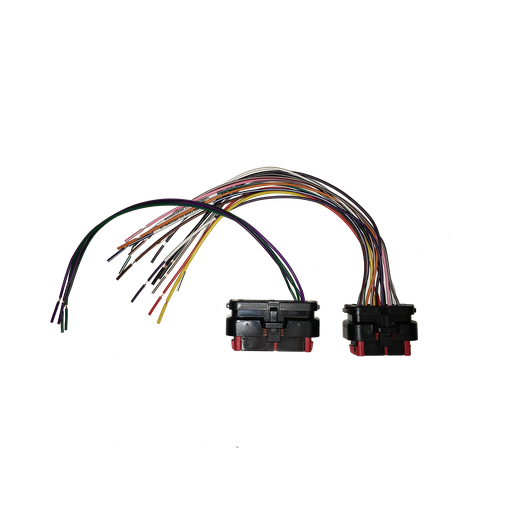

Factory Plug Adaptors
We offer factory plug adaptors as an accessory part for Authorized Dealers who need these to power units in display boards, for customers that have aftermarket radios and the OEM plug(s) have been cut-off, and customers adding rear speakers to a bike that did not previously have rear speakers (you will only need the rear harness.)  The small connector is power, ground, ACC, illumination, and front speaker outputs. The other connector only has rear speaker outputs.

Factory Plug Adaptors Harness Detail
Rockford Fosgate Part: 1130-72997-01
Description: 35-pin & 23-in Adaptors
Quantity: 2 harnesses
Buy Now: Buy Now
