DSR1 Bluetooth Connection Solutions - Advisory

I'm having trouble connecting to my DSR1 via Bluetooth.  How do I fix this?

NOTE: If your DSR1 mainboard firmware is v1.5.6.0 or newer, it requires both a Bluetooth update and Maestro re-flash. Please view DSR1 Software and refer to "Software Update Instructions" for more information. When using Bluetooth to connect to the DSR1, use Rockford Fosgate® PerfectTune™ for Apple or Android (download below.) DO NOT use your mobile device's built-in Bluetooth connection.

---



1. Launch PerfectTune®
   • Open the PerfectTune® app on your Android or Apple device.



2. Open Device Manager

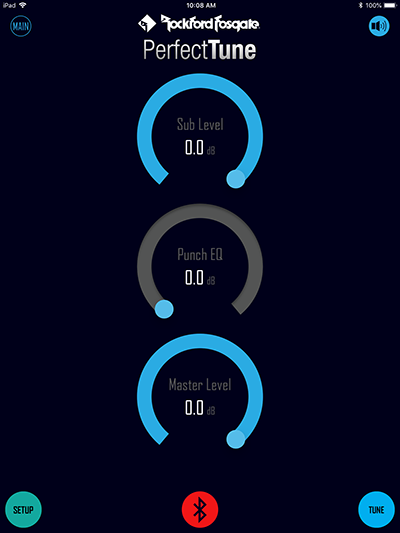

   • The red Bluetooth icon on the bottom of PerfectTune® indicates it is not connected to any DSR1 devices.
   • Press the red Bluetooth icon to open the Device Manager.



3. Select Desired DSR1
   • Your DSR1 unit will be appear in the list of available DSR1 devices.
   • Android devices must turn-on "Location Services" in order to activate the phone's Bluetooth radio.
   • If working with multiple devices, each DSR1 that is properly powered-on will appear in the Device Manager.
   • Select the desired DSR1 device to connect with PerfectTune®.



4. Verify Connection
   • The Bluetooth icon on the bottom of PerfectTune® will turn to blue.
   • Blue indicates the DSR1 is actively connected to PerfectTune®.



5. Diagnostic Menu
   • Select the blue "i" icon to the right of the connected DSR1 to view the following info:

   DSR1 • Manufacturer Name • Model Number • Serial Number • Hardware Version • Firmware Version • Bootloader Version

   MAESTRO • Serial Number • Firmware Name • Hardware Version • Firmware Version • Bootloader Version
