RF-HLC4 4-channel high level converter - owners manual

How do I wire the RF-HLC4 high level converter? The RF-HLC4 is a static (non-adjustable) 4-channel high level converter. Below is a link to the owners manual, a diagram found on the back of the package and a special Installtion Reference Sheet.

• RF-HLC4 - 4-channel high-to-low level converter [Download Manual] [Installation Reference Sheet]

---

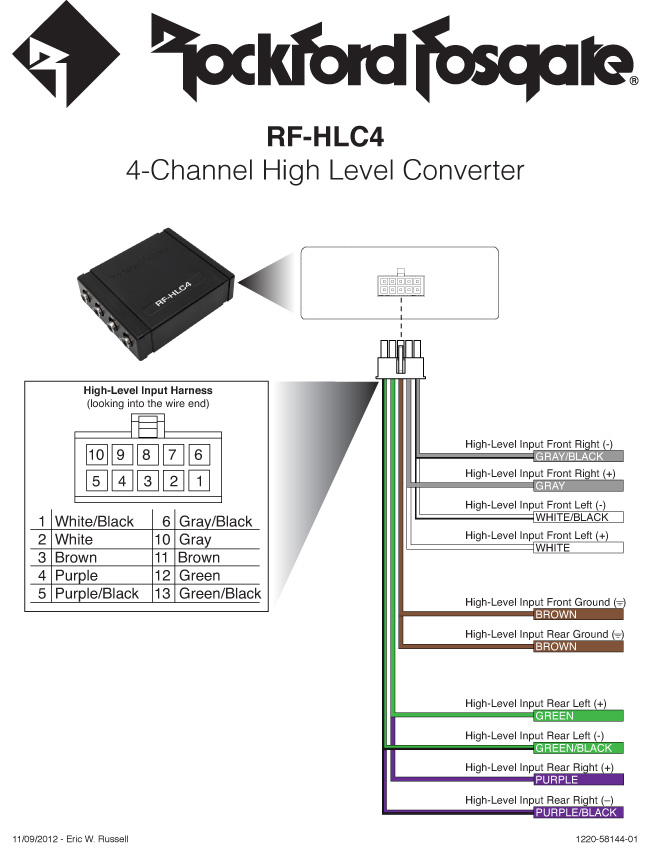

Packaging Diagram

---

Installation Reference Sheet
