In addition to the Power T1 & Power T2 standard recommended enclosures as listed in the owner's manual, these powerful enclosure designs were built and optimized by RTTI (Rockford Technical Training Institute) specifically for use in demo vehicles. As with any subwoofer, there are several enclosure designs and tuning options. Some of the designs listed below are slightly modified versions of the owner's manual recommendations. Our RTTI staff has verified these enclosures handle tons of power and produce monster bass in real-world vehicle applications.
$NOTICE These vented "Powerful Enclosures" use the EXACT SAME recommended internal box volume (NET Vb) and tuning frequencies (fb) as listed in the owner's manual. However, these designs simply have different physical shapes and use rectangular vents instead of a circular ones.
You can design your own custom shaped enclosure using our online RFTECH: Woofer BoxWizard. Just remember to stay with the recommended internal box volume as indicated in the owner's manual. These designs can be downloaded in PDF format below under FILE ATTACHMENTS.

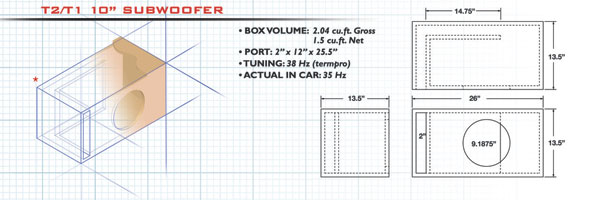

| T110D2 / T110D4 & T210D2 / T210D4 |
|
|

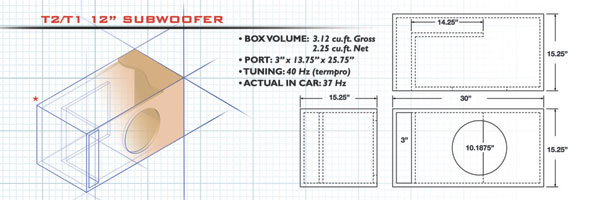

| T112D2 / T112D4 & T212D2 / T212D4 |
|
|

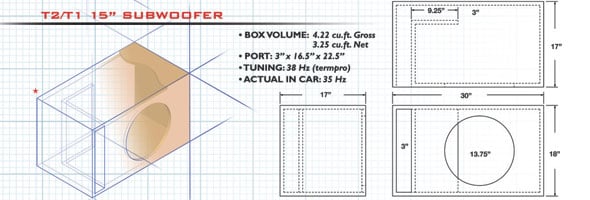

| T115D2 / T115D4 & T215D2 / T215D4 |
|
|
